Palisade Fencing Solutions: Durable, Secure, and at Competitive Prices
Palisade fencing is an ever-popular solution to South African residential, commercial, municipal and industrial perimeter security needs. Palisade fencing is a durable, affordable fencing solution and it offers both visual and physical deterrence.

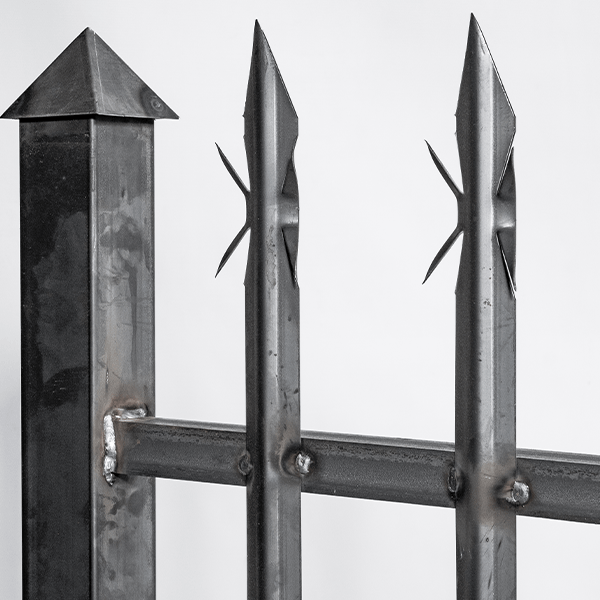

Palisade fencing is an extremely durable perimeter fencing option and can also be galvanized to ensure rust resistance. NJR Steel can supply panels, posts, pales and a range of spike designs including 3 spike, 5 spike, 7 spike and devil’s fork.
IN STOCK AT 21 BRANCHES
COLLECTION OR DELIVERY
CUT TO SIZE FOR TRANSPORT
WHY CHOOSE NJR STEEL PALISADE FENCING?
Strong & Durable
NJR Steel Palisade fencing is an extremely strong rust-resistant, durable steel fencing solution. We supply only the highest quality palisade fencing.
Custom Palisade & Gate Options
We have a wide range of Palisade options available allowing you to customize your fence to your requirements. Swing, sliding and pedestrian gates can be custom-made to the clients specifications.
Excellent Boundary Security
Palisade is a popular perimeter security option as it’s difficult to climb, strong, and we can also add electric fencing for complete boundary security.
Everything Under One Roof
NJR Steel Branches stock a wide range of products including palisade fencing, screws, bolts, gates, electric fencing, steel paint, welding equipment, accessories and much more.
VARIOUS OPTIONS TO CHOOSE FROM
3-SPIKE, 5-SPIKE, 7-spike,
& Devil’s Fork
Custom made gates & panels
Add Electric fencing
Palisade Fencing Sizes & Specifications
D50 Section cold rolled palisade
| Material | Standard Heights | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Cover Width | Thickness | 0,500 | 0,600 | 1,200 | 1,500 | 1,800 | 2,000 | 2,400 | ||
| 50 | 2,0 | Kg's | 0,442 | 0,531 | 1,061 | 1,326 | 1,592 | 1,768 | 2,122 | |
| 50 | 2,5 | Kg's | 0,553 | 0,663 | 1,326 | 1,658 | 1,989 | 2,210 | 2,653 | |
| 50 | 3,0 | Kg's | 0,663 | 0,796 | 1,592 | 1,989 | 2,387 | 2,653 | 3,183 | |
D60 Section
| Material | Standard Heights | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Cover Width | Thickness | 0,500 | 0,600 | 1,200 | 1,500 | 1,800 | 2,000 | 2,400 | ||
| 63 | 2,0 | Kg's | 0,563 | 0,675 | 1,350 | 1,688 | 2,026 | 2,251 | 2,701 | |
| 63 | 2,5 | Kg's | 0,703 | 0,844 | 1,688 | 2,110 | 2,532 | 2,813 | 3,376 | |
| 63 | 3,0 | Kg's | 0,844 | 1,013 | 2,026 | 2,532 | 3,038 | 3,376 | 4,051 | |
30 x 30 Econo
| Material | Standard Heights | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Cover Width | Thickness | 0,500 | 0,600 | 1,200 | 1,500 | 1,800 | 2,000 | 2,400 | ||
| 45 | 2,0 | Kg's | 0,402 | 0,482 | 0,965 | 1,206 | 1,447 | 1,608 | 1,929 | |
| 45 | 2,5 | Kg's | 0,502 | 0,603 | 1,206 | 1,507 | 1,809 | 2,010 | 2,411 | |
| 45 | 3,0 | Kg's | 0,603 | 0,723 | 1,447 | 1,809 | 2,170 | 2,411 | 2,894 | |
40 x 40 Econo
| Material | Standard Heights | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Cover Width | Thickness | 0,500 | 0,600 | 1,200 | 1,500 | 1,800 | 2,000 | 2,400 | ||
| 60 | 2,0 | Kg's | 0,563 | 0,675 | 1,350 | 1,688 | 2,026 | 2,251 | 2,701 | |
| 60 | 2,5 | Kg's | 0,703 | 0,844 | 1,688 | 2,110 | 2,532 | 2,813 | 3,376 | |
| 60 | 3,0 | Kg's | 0,844 | 1,013 | 2,026 | 2,532 | 3,038 | 3,376 | 4,051 | |
25 x 25 HR Angle
| Material | Standard Heights | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Cover Width | Thickness | 0,500 | 0,600 | 1,200 | 1,500 | 1,800 | 2,000 | 2,400 | ||
| 35 | 2,0 | Kg's | 0,387 | 0,464 | 0,929 | 1,161 | 1,393 | 1,548 | 1,858 | |
| 35 | 2,5 | Kg's | 0,475 | 0,570 | 1,140 | 1,425 | 1,710 | 1,900 | 2,280 | |
| 35 | 3,0 | Kg's | 0,555 | 0,666 | 1,332 | 1,665 | 1,998 | 2,220 | 2,664 | |
30 x 30 HR Angle
| Material | Standard Heights | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Cover Width | Thickness | 0,500 | 0,600 | 1,200 | 1,500 | 1,800 | 2,000 | 2,400 | ||
| 43 | 2,0 | Kg's | 0,475 | 0,570 | 1,140 | 1,425 | 1,710 | 1,900 | 2,280 | |
| 43 | 2,5 | Kg's | 0,585 | 0,702 | 1,404 | 1,755 | 2,106 | 2,340 | 2,808 | |
| 43 | 3,0 | Kg's | 0,680 | 0,816 | 1,632 | 2,040 | 2,448 | 2,720 | 3,264 | |
40 x 40 HR Angle
| Material | Standard Heights | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Cover Width | Thickness | 0,500 | 0,600 | 1,200 | 1,500 | 1,800 | 2,000 | 2,400 | ||
| 57 | 2,0 | Kg's | 0,643 | 0,771 | 1,542 | 1,928 | 2,313 | 2,570 | 3,084 | |
| 57 | 2,5 | Kg's | 0,790 | 0,948 | 1,896 | 2,370 | 2,844 | 3,160 | 3,792 | |
| 57 | 3,0 | Kg's | 0,935 | 1,122 | 2,244 | 2,805 | 3,366 | 3,740 | 4,488 |
Cross Member HR Angle
| Material | Length (Metres) | KG's |
|---|---|---|
| 40 x 40 x 2.0 HR Angle | 3,0 | 3,855 |
| 40 x 40 x 2.5 HR Angle | 3,0 | 4,740 |
| 40 x 40 x 3.0 HR Angle | 3,0 | 5,610 |
| 40 x 40 x 5.0 HR Angle | 3,0 | 8,910 |
Cross Member Open Channel
| Material | Length (Metres) | Kg's |
|---|---|---|
| 25 x 60 x 25 x 2.0mm Open Channel | 3,0 | 5,310 |
| 25 x 60 x 25 x 2.5mm Open Channel | 3,0 | 6,633 |
| 25 x 60 x 25 x 3.0mm Open Channel | 3,0 | 7,959 |
Gate Track
| Material | Length (Metres) | Kg's |
|---|---|---|
| D60 Gate Track 2.0mm | 6,0 | 6,752 |
| D60 Gate Track 2.5mm | 6,0 | 8,44 |
| D60 Gate Track 3.0mm | 6,0 | 10,128 |
Popular Questions
Got a question? We’re here to help.
HOW TO BUY PALISADE FENCING FROM NJR STEEL
- Measure the approximate metres of palisade that you require.
- Download our Palisade Fencing Catalogue at the top under “Technical Documents”
- Browse the catalogue to get an idea of the different profiles and lengths available.
- Click “Get A Quote” below and let us know what we can help you with.
- A Fencing consultant will contact you with your quote and discuss all the options with you.
- NJR Steel strive to be first for steel in all areas, especially palisade fencing.
Contact us today for friendly service, helpful advice and a competitive quote!
GET PRICING FROM YOUR
NEAREST NJR STEEL BRANCH
We have 21 branches across 7 provinces that are ready and willing to help you. Talk to us today to get pricing or just advice for your next project.
