Premium Quality Steel I Beams & UNIVERSAL BEAMS at NJR Steel
NJR Steel branches stock a broad range of beams which are designed to support horizontal loading across their axis and are therefore much deeper than they are wide in order to prevent bending.

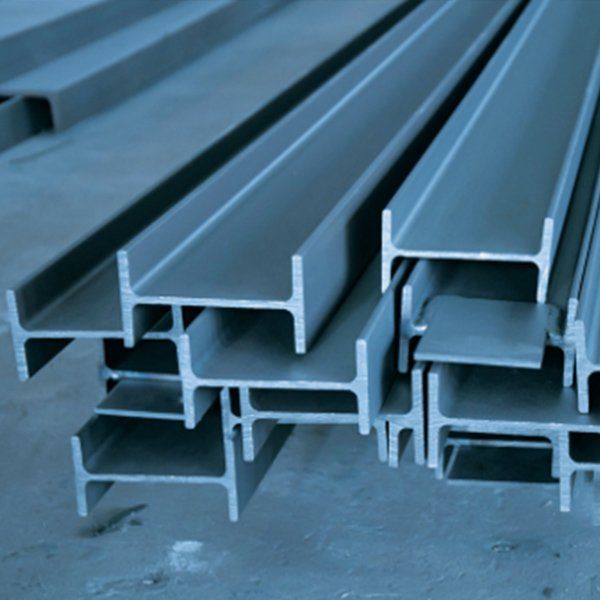

The most common beam in construction is the I-beam, also known as a universal beam – a steel member with an I or H-shaped cross-section. I-beams have a strong centre or “web” for vertical support, along with flanges on either side to provide strength in the horizontal plane. They may be used on their own or cast in concrete.
We supply superior quality BS EN10025-2-S355 JR, JR IPE and JR IPE (AA) universal beams.
IN STOCK AT 21 BRANCHES
COLLECTION OR DELIVERY
CUT TO SIZE FOR TRANSPORT
Steel Beam Sizes & Specifications
Beams - S355 JR
| Dimensions | Kg's Per Metre | Standard Lengths | |||||
|---|---|---|---|---|---|---|---|
| 6 | 9 | 11 | 13 | ||||
| 203 | x | 133 | 25,10 | X | X | X | |
| 203 | x | 133 | 30,00 | X | X | X | |
| 254 | x | 146 | 31,10 | X | X | X | |
| 254 | x | 146 | 37,00 | X | X | X | |
| 254 | x | 146 | 43,00 | X | X | X | |
| 305 | x | 102 | 24,80 | X | X | X | |
| 305 | x | 102 | 28,20 | X | X | X | |
| 305 | x | 102 | 32,80 | X | X | X | |
| 305 | x | 165 | 40,30 | X | X | X | |
| 305 | x | 165 | 46,10 | X | X | X | |
| 305 | x | 165 | 54,00 | X | X | X | |
| 356 | x | 171 | 45,00 | X | X | X | |
| 356 | x | 171 | 51,00 | X | X | X | |
| 356 | x | 171 | 57,00 | X | X | X | |
| 356 | x | 171 | 67,10 | X | X | ||
| 406 | x | 140 | 39,00 | X | X | X | |
| 406 | x | 140 | 46,00 | X | X | X | |
| 406 | x | 178 | 54,10 | X | X | X | |
| 406 | x | 178 | 60,10 | X | X | X | |
| 406 | x | 178 | 67,10 | X | X | X | |
| 406 | x | 178 | 74,20 | X | X | ||
| 457 | x | 191 | 67,10 | X | X | X | |
| 457 | x | 191 | 74,30 | X | X | X | |
| 457 | x | 191 | 82,00 | X | X | ||
| 457 | x | 191 | 89,30 | X | X | ||
| 457 | x | 191 | 98,30 | X | X | ||
| 533 | x | 210 | 82,20 | ||||
| 533 | x | 210 | 92,10 | ||||
| 533 | x | 210 | 101,00 | ||||
| 533 | x | 210 | 109,00 | ||||
| 533 | x | 210 | 122,00 | ||||
YOUR FIRST CHOICE FOR STEEL
VALUE ADDED SERVICES
NJR Steel offers extensive value added services to our customers in-house at our branches including coil processing, sheet steel guillotining, and steel cut to length.
This enables us to offer a better and more comprehensive turnkey service across the supply chain. It also reduces lead times as we can respond quickly to your requirements, and ensures we can accommodate large orders that exceed our stock-holding limitations at a highly competitive price.
GET PRICING FROM YOUR
NEAREST NJR STEEL BRANCH
We have 21 branches across 7 provinces that are ready and willing to help you. Talk to us today to get pricing or just advice for your next project.
